Check if There is a Valid Path in a Grid

Medium

Robinhood

1 view

Topics:

ArraysGraphs

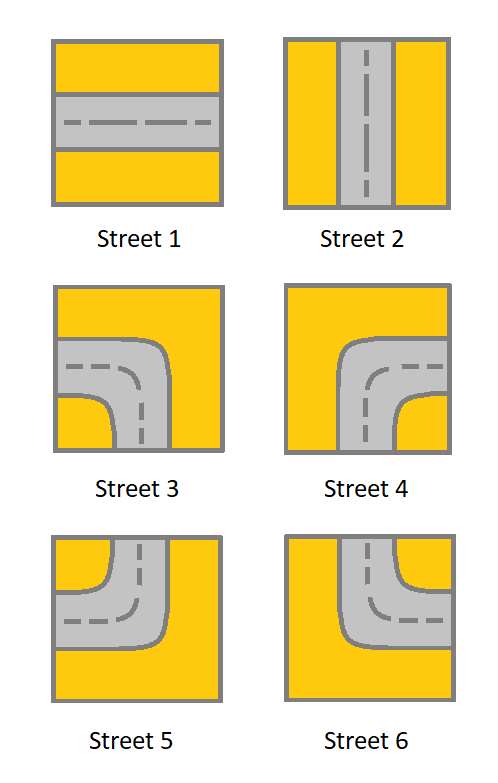

You are given an m x n grid. Each cell of grid represents a street. The street of grid[i][j] can be:

1 which means a street connecting the left cell and the right cell.
2 which means a street connecting the upper cell and the lower cell.
3 which means a street connecting the left cell and the lower cell.
4 which means a street connecting the right cell and the lower cell.
5 which means a street connecting the left cell and the upper cell.
6 which means a street connecting the right cell and the upper cell.

You will initially start at the street of the upper-left cell (0, 0). A valid path in the grid is a path that starts from the upper left cell (0, 0) and ends at the bottom-right cell (m - 1, n - 1). The path should only follow the streets.

Notice that you are not allowed to change any street.

Return true if there is a valid path in the grid or false otherwise.

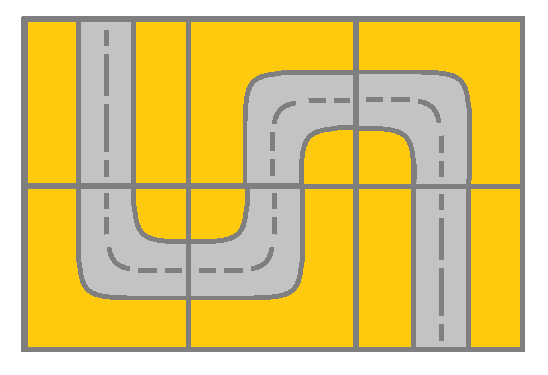

Example 1:

Input: grid = [[2,4,3],[6,5,2]]
Output: true
Explanation: As shown you can start at cell (0, 0) and visit all the cells of the grid to reach (m - 1, n - 1).

Example 2:

Input: grid = [[1,2,1],[1,2,1]]
Output: false
Explanation: As shown you the street at cell (0, 0) is not connected with any street of any other cell and you will get stuck at cell (0, 0)

Example 3:

Input: grid = [[1,1,2]]
Output: false
Explanation: You will get stuck at cell (0, 1) and you cannot reach cell (0, 2).

Constraints:

m == grid.length
n == grid[i].length
1 <= m, n <= 300
1 <= grid[i][j] <= 6

Try coding it in LeetCode

Check if There is a Valid Path in a Grid

Medium

Robinhood

1 view

Topics:

ArraysGraphs

You are given an m x n grid. Each cell of grid represents a street. The street of grid[i][j] can be:

1 which means a street connecting the left cell and the right cell.
2 which means a street connecting the upper cell and the lower cell.
3 which means a street connecting the left cell and the lower cell.
4 which means a street connecting the right cell and the lower cell.
5 which means a street connecting the left cell and the upper cell.
6 which means a street connecting the right cell and the upper cell.

You will initially start at the street of the upper-left cell (0, 0). A valid path in the grid is a path that starts from the upper left cell (0, 0) and ends at the bottom-right cell (m - 1, n - 1). The path should only follow the streets.

Notice that you are not allowed to change any street.

Return true if there is a valid path in the grid or false otherwise.

Example 1:

Input: grid = [[2,4,3],[6,5,2]]
Output: true
Explanation: As shown you can start at cell (0, 0) and visit all the cells of the grid to reach (m - 1, n - 1).

Example 2:

Input: grid = [[1,2,1],[1,2,1]]
Output: false
Explanation: As shown you the street at cell (0, 0) is not connected with any street of any other cell and you will get stuck at cell (0, 0)

Example 3:

Input: grid = [[1,1,2]]
Output: false
Explanation: You will get stuck at cell (0, 1) and you cannot reach cell (0, 2).

Constraints:

m == grid.length
n == grid[i].length
1 <= m, n <= 300
1 <= grid[i][j] <= 6

Try coding it in LeetCode

Solution

Clarifying Questions

When you get asked this question in a real-life environment, it will often be ambiguous (especially at FAANG). Make sure to ask these questions in that case:

What are the dimensions of the grid (m and n), and what are the constraints on their values? Can the grid be empty?
What are the possible integer values for the grid cells, and what are the specific street types they represent (could you provide a mapping)?
Is it possible for the starting cell (0, 0) or the ending cell (m-1, n-1) to contain a street type that makes it impossible to start or end the path?
If a valid path exists, is any valid path sufficient, or are there specific criteria for the path (e.g., shortest path, path avoiding certain types of streets)?
What should I return if there is no valid path found, specifically, should I return null, throw an exception, or is returning false acceptable?

Brute Force Solution

Approach

Imagine you are navigating a maze with pathways. The brute force approach involves trying every possible route through the maze, one step at a time, until you find a path that leads to the exit or you've tried absolutely everything. It's like exploring every single nook and cranny.

Here's how the algorithm would work step-by-step:

Start at the beginning of the grid, your starting point.
From your current position, try moving in every possible direction allowed by the current cell's shape.
If a move takes you outside the grid's boundaries, or to a cell you've already visited in this attempt, abandon that path and try a different direction.
If a move leads you to the end of the grid, you've found a valid path! Success!
If none of the possible moves from your current position lead to the end or to a useful new spot, backtrack to the previous cell and try a different direction from there.
Keep repeating this process: exploring new directions, backtracking when necessary, and checking for success. You are trying every single possible combination of movements through the grid.
If you've explored every single possible path from the starting point and haven't found a valid path to the end, then there is no valid path.

Code Implementation

def has_valid_path_brute_force(grid):
    rows = len(grid)
    cols = len(grid[0])

    def is_valid_move(row, col):
        return 0 <= row < rows and 0 <= col < cols

    def get_possible_moves(row, col, street_type):
        if street_type == 1:
            return [(row, col + 1), (row, col - 1)]
        elif street_type == 2:
            return [(row + 1, col), (row - 1, col)]
        elif street_type == 3:
            return [(row, col - 1), (row + 1, col)]
        elif street_type == 4:
            return [(row, col + 1), (row + 1, col)]
        elif street_type == 5:
            return [(row, col - 1), (row - 1, col)]
        else:
            return [(row, col + 1), (row - 1, col)]

    def backtrack(row, col, visited):
        if row == rows - 1 and col == cols - 1:
            return True

        street_type = grid[row][col]
        possible_moves = get_possible_moves(row, col, street_type)

        for next_row, next_col in possible_moves:
            if is_valid_move(next_row, next_col) and (next_row, next_col) not in visited:
                # Mark the next cell as visited before exploring it.
                visited.add((next_row, next_col))

                if backtrack(next_row, next_col, visited):
                    return True

                # Backtrack: remove the cell from visited.
                visited.remove((next_row, next_col))

        return False

    # Start the search from the top-left cell.
    start_row = 0
    start_col = 0
    visited = set([(start_row, start_col)])

    # Invoke the recursive helper function.
    return backtrack(start_row, start_col, visited)

Big(O) Analysis

Time Complexity

O(2^(m*n)) – The described brute-force approach explores every possible path in the m x n grid. In the worst-case scenario, the algorithm could potentially visit each cell multiple times, exploring different paths. Since each cell can have multiple directions to explore (up to 4), and the algorithm might revisit cells, the number of possible paths grows exponentially with the size of the grid. Therefore, the time complexity is approximately O(4^(m*n)) which simplifies to O(2^(m*n)).

Space Complexity

O(M*N) – The algorithm uses a recursive approach to explore all possible paths in the grid. It maintains a call stack to keep track of the current path being explored, and in the worst case, the depth of this recursion can be proportional to the number of cells in the grid. Additionally, the 'visited' status of each cell along a potential path is implicitly stored by the recursion (state on the stack) or requires an additional data structure to track visited cells which is not cleared on backtracking. Therefore, if the grid has dimensions M rows and N columns, the maximum depth of the recursion (and hence the space occupied by the call stack or the visited array) would be proportional to M*N, leading to a space complexity of O(M*N) where M and N are the dimensions of the grid.

Optimal Solution

Approach

The core idea is to traverse the grid following the paths defined by each cell's shape, ensuring you stay on a valid route from start to finish. We use a technique to remember where we've already been to avoid getting stuck in loops. By carefully following the paths and remembering our steps, we can determine if a valid route exists.

Here's how the algorithm would work step-by-step:

Start at the top-left corner of the grid.
Examine the shape of the current cell to determine which directions you can move (left, right, up, or down).
Choose a valid direction to move in, based on both the cell's shape and the boundaries of the grid.
Before moving, mark the current cell as visited to prevent revisiting it later.
Move to the next cell and repeat the process of checking the shape and choosing a direction.
If you reach the bottom-right corner, you have found a valid path and can stop.
If you reach a dead end (no valid moves) or a previously visited cell, backtrack to the previous cell and try a different direction.
If you have explored all possible paths from the starting point and haven't reached the end, there is no valid path.

Code Implementation

def has_valid_path(grid):
    rows = len(grid)
    columns = len(grid[0])
    visited = set()

    def find_path(row, column):
        if row == rows - 1 and column == columns - 1:
            return True

        visited.add((row, column))
        current_cell = grid[row][column]

        possible_moves = []
        if current_cell == 1:
            possible_moves = [(0, 1), (0, -1)]
        elif current_cell == 2:
            possible_moves = [(1, 0), (-1, 0)]
        elif current_cell == 3:
            possible_moves = [(0, -1), (1, 0)]
        elif current_cell == 4:
            possible_moves = [(0, 1), (1, 0)]
        elif current_cell == 5:
            possible_moves = [(0, -1), (-1, 0)]
        elif current_cell == 6:
            possible_moves = [(0, 1), (-1, 0)]

        for move_row, move_column in possible_moves:
            new_row = row + move_row
            new_column = column + move_column

            # Boundary and connectivity check
            if 0 <= new_row < rows and 0 <= new_column < columns and \
               (new_row, new_column) not in visited:

                next_cell = grid[new_row][new_column]
                valid_connection = False

                if current_cell == 1:
                    if move_column == 1 and (next_cell in [1, 3, 5]):
                        valid_connection = True
                    elif move_column == -1 and (next_cell in [1, 4, 6]):
                        valid_connection = True
                elif current_cell == 2:
                    if move_row == 1 and (next_cell in [2, 5, 6]):
                        valid_connection = True
                    elif move_row == -1 and (next_cell in [2, 3, 4]):
                        valid_connection = True
                elif current_cell == 3:
                    if move_row == 1 and (next_cell in [2, 5, 6]):
                        valid_connection = True
                    elif move_column == -1 and (next_cell in [1, 4, 6]):
                        valid_connection = True
                elif current_cell == 4:
                    if move_row == 1 and (next_cell in [2, 5, 6]):
                        valid_connection = True
                    elif move_column == 1 and (next_cell in [1, 3, 5]):
                        valid_connection = True
                elif current_cell == 5:
                    if move_row == -1 and (next_cell in [2, 3, 4]):
                        valid_connection = True
                    elif move_column == -1 and (next_cell in [1, 4, 6]):
                        valid_connection = True
                elif current_cell == 6:
                    if move_row == -1 and (next_cell in [2, 3, 4]):
                        valid_connection = True
                    elif move_column == 1 and (next_cell in [1, 3, 5]):
                        valid_connection = True

                # Only proceed if the move is valid
                if valid_connection:
                    if find_path(new_row, new_column):
                        return True
        # Backtrack if no path is found
        visited.remove((row, column))
        return False

    # Start path finding from the top-left cell
    if find_path(0, 0):
        return True

    # No valid path exists from start to end
    return False

Big(O) Analysis

Time Complexity

O(m*n) – The algorithm explores the grid (m rows and n columns) using a depth-first search approach. In the worst-case scenario, we might visit each cell in the grid. Each cell visit involves a constant amount of work: checking the cell's shape and possible directions to move and marking the cell as visited. Therefore, the time complexity is proportional to the number of cells in the grid, which is m * n. This results in O(m*n) time complexity where m is the number of rows, and n is the number of columns.

Space Complexity

O(m*n) – The algorithm uses a visited matrix of the same dimensions as the input grid (m rows and n columns) to keep track of visited cells to avoid cycles, where m is the number of rows and n is the number of columns. Therefore, the space used by the visited matrix is proportional to the number of cells in the grid, which is m*n. In the worst case, the algorithm may need to store the visited status of all cells. The recursion stack can also grow to a depth of m*n in the worst case of exploring all possible paths, contributing O(m*n) space. Thus the auxiliary space is O(m*n).

Edge Cases

Case	How to Handle
Null or empty grid	Return false immediately as there is no path to traverse.
Grid with only one cell (1x1)	Return true if the grid is 1x1, because the start and end are the same, representing a valid path.
No valid path exists from (0, 0) to (m-1, n-1)	The algorithm should explore all possible paths and return false if the destination is never reached after exploring all accessible cells.
Grid dimensions are very large (m and n are close to the maximum allowed integer)	Consider using iterative DFS or BFS to avoid potential stack overflow errors with recursive DFS and to handle large grid sizes efficiently.
All street types in the grid are the same, but do not allow a path from start to end.	The path finding algorithm must still correctly identify the lack of a valid path even if all cells have the same type.
Street types outside the range [1, 6]	Treat street types outside the valid range as an obstacle or an invalid state, preventing movement through that cell.
Grid is a single row or a single column, and the path requires moving in the other dimension.	The path finding algorithm must respect the grid boundaries and street types and correctly detect cases with impossible paths along a single row or column.
The path creates a cycle.	Use a visited set to keep track of visited cells, preventing the algorithm from getting stuck in an infinite loop due to cycles.
