Falling Squares

Hard

Block

1 view

Topics:

ArraysTwo PointersSliding Windows

There are several squares being dropped onto the X-axis of a 2D plane.

You are given a 2D integer array positions where positions[i] = [left_i, sideLength_i] represents the i^th square with a side length of sideLength_i that is dropped with its left edge aligned with X-coordinate left_i.

Each square is dropped one at a time from a height above any landed squares. It then falls downward (negative Y direction) until it either lands on the top side of another square or on the X-axis. A square brushing the left/right side of another square does not count as landing on it. Once it lands, it freezes in place and cannot be moved.

After each square is dropped, you must record the height of the current tallest stack of squares.

Return an integer array ans where ans[i] represents the height described above after dropping the i^th square.

Example 1:

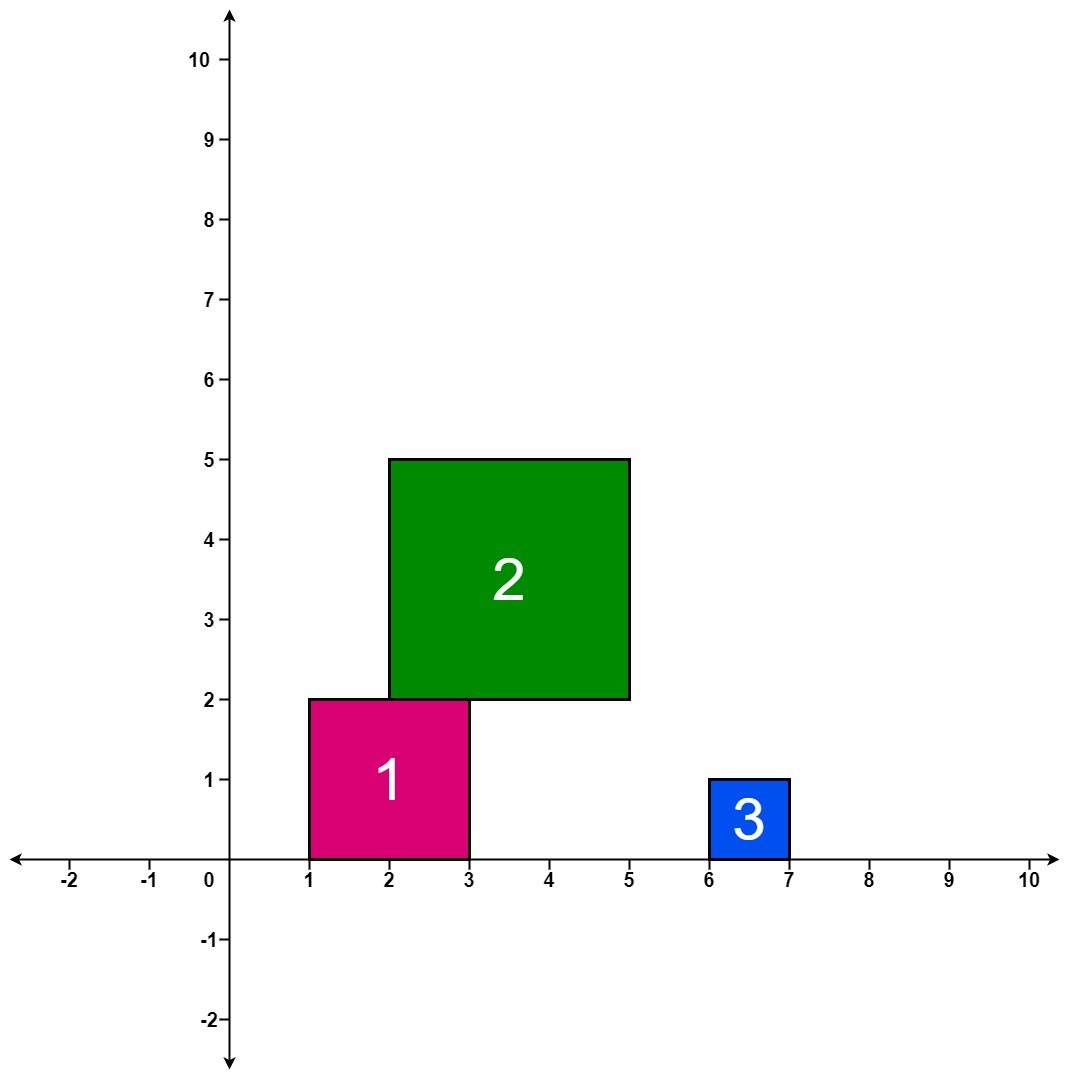

Input: positions = [[1,2],[2,3],[6,1]]
Output: [2,5,5]
Explanation:
After the first drop, the tallest stack is square 1 with a height of 2.
After the second drop, the tallest stack is squares 1 and 2 with a height of 5.
After the third drop, the tallest stack is still squares 1 and 2 with a height of 5.
Thus, we return an answer of [2, 5, 5].

Example 2:

Input: positions = [[100,100],[200,100]]
Output: [100,100]
Explanation:
After the first drop, the tallest stack is square 1 with a height of 100.
After the second drop, the tallest stack is either square 1 or square 2, both with heights of 100.
Thus, we return an answer of [100, 100].
Note that square 2 only brushes the right side of square 1, which does not count as landing on it.

Constraints:

1 <= positions.length <= 1000
1 <= left_i <= 10⁸
1 <= sideLength_i <= 10⁶

Try coding it in LeetCode

Falling Squares

Hard

Block

1 view

Topics:

ArraysTwo PointersSliding Windows

There are several squares being dropped onto the X-axis of a 2D plane.

You are given a 2D integer array positions where positions[i] = [left_i, sideLength_i] represents the i^th square with a side length of sideLength_i that is dropped with its left edge aligned with X-coordinate left_i.

Each square is dropped one at a time from a height above any landed squares. It then falls downward (negative Y direction) until it either lands on the top side of another square or on the X-axis. A square brushing the left/right side of another square does not count as landing on it. Once it lands, it freezes in place and cannot be moved.

After each square is dropped, you must record the height of the current tallest stack of squares.

Return an integer array ans where ans[i] represents the height described above after dropping the i^th square.

Example 1:

Input: positions = [[1,2],[2,3],[6,1]]
Output: [2,5,5]
Explanation:
After the first drop, the tallest stack is square 1 with a height of 2.
After the second drop, the tallest stack is squares 1 and 2 with a height of 5.
After the third drop, the tallest stack is still squares 1 and 2 with a height of 5.
Thus, we return an answer of [2, 5, 5].

Example 2:

Input: positions = [[100,100],[200,100]]
Output: [100,100]
Explanation:
After the first drop, the tallest stack is square 1 with a height of 100.
After the second drop, the tallest stack is either square 1 or square 2, both with heights of 100.
Thus, we return an answer of [100, 100].
Note that square 2 only brushes the right side of square 1, which does not count as landing on it.

Constraints:

1 <= positions.length <= 1000
1 <= left_i <= 10⁸
1 <= sideLength_i <= 10⁶

Try coding it in LeetCode

Solution

Clarifying Questions

When you get asked this question in a real-life environment, it will often be ambiguous (especially at FAANG). Make sure to ask these questions in that case:

What are the constraints on the `positions` array size and the side length of each square? Is there a maximum value?
Can the coordinates in the `positions` array be negative or zero?
If squares overlap, how is the height at the overlapping position determined (e.g., is it the sum of the heights or the maximum of the heights)?
Is the order of squares in the `positions` array the order in which they are dropped?
What should the output be if the `positions` array is empty?

Brute Force Solution

Approach

The problem involves dropping squares onto a line and figuring out the height at each drop. The brute force approach simulates each drop and then meticulously recalculates the entire skyline after each square lands to determine the maximum height at that point.

Here's how the algorithm would work step-by-step:

Imagine a blank canvas representing the line. We will draw the fallen squares onto it.
For each new square that falls, figure out where its left edge lands on the line.
Check if the new square overlaps with any of the previously fallen squares. Overlapping means any horizontal part of the new square occupies the same space as the horizontal part of a previous square.
If the new square overlaps, figure out how high the existing squares are at the location where the new square is going to fall. The highest of these heights determines the 'ground' for the new square.
Place the new square on the canvas, its bottom touching the ground level calculated in the previous step.
After placing the square, re-examine the entire canvas to determine the maximum height achieved so far. This is the height after that particular drop.
Record this maximum height.
Repeat this process for each square that falls, keeping track of the maximum height after each drop.

Code Implementation

def falling_squares_brute_force(positions):
    fallen_squares = []
    heights = []

    for position in positions:
        left_edge = position[0]
        side_length = position[1]
        right_edge = left_edge + side_length

        # Determine the ground level for the new square.
        ground_level = 0
        for fallen_left, fallen_side, fallen_height in fallen_squares:
            fallen_right = fallen_left + fallen_side
            # Check for overlap
            if max(left_edge, fallen_left) < min(right_edge, fallen_right):
                ground_level = max(ground_level, fallen_height)

        new_height = ground_level + side_length
        fallen_squares.append((left_edge, side_length, new_height))

        # Recalculate the maximum height after the new square falls.
        max_height = 0
        for fallen_left, fallen_side, fallen_height in fallen_squares:
            max_height = max(max_height, fallen_height)

        heights.append(max_height)

    return heights

Big(O) Analysis

Time Complexity

O(n²) – For each of the n falling squares, we iterate through all previously fallen squares to check for overlaps. This overlap check determines the ground level for the new square. After placing the square, we also need to re-examine the entire canvas to determine the new maximum height after each drop, which again iterates through all existing squares implicitly. This nested iteration results in approximately n * n operations. Therefore, the time complexity is O(n²).

Space Complexity

O(N) – The algorithm stores information about each fallen square to check for overlaps and calculate heights. This requires storing, at most, N squares where N is the number of falling squares. Thus, it uses a data structure (implicitly, a list or array) to keep track of fallen squares, contributing O(N) space. Since each square contains constant information (left edge and height), the auxiliary space grows linearly with the number of squares.

Optimal Solution

Approach

The problem involves stacking squares and figuring out the highest point after each square falls. The efficient solution cleverly tracks the covered intervals on the 'ground' to determine how high each new square will land and update the overall maximum height.

Here's how the algorithm would work step-by-step:

Imagine the ground is initially flat at height zero everywhere.
When a square falls, determine where it lands on the ground.
To do this, check what existing 'ground' intervals the falling square overlaps with.
The height at which the square lands will be the maximum height of the ground intervals it overlaps.
After the square lands, it creates a new ground interval with a height equal to the landing height plus the side length of the square.
Importantly, the new interval may overlap and replace existing intervals, either partially or fully.
Combine or remove any existing intervals that overlap with the newly landed square to correctly reflect the new ground profile.
The maximum height is updated to include the highest point reached at each step as squares fall.
By tracking and merging intervals, we can quickly determine the landing height and update the ground profile without exhaustively checking every position.

Code Implementation

def fallingSquares(positions):
    groundIntervals = []
    maxHeight = 0
    result = []

    for position in positions:
        left = position[0]
        sideLength = position[1]
        right = left + sideLength
        currentHeight = 0

        # Find the max height in the overlapping intervals.
        for intervalLeft, intervalRight, intervalHeight in groundIntervals:
            if left < intervalRight and intervalLeft < right:
                currentHeight = max(currentHeight, intervalHeight)

        newHeight = currentHeight + sideLength
        maxHeight = max(maxHeight, newHeight)
        result.append(maxHeight)

        newIntervals = []
        i = 0

        # Merge overlapping intervals and create new ones.
        while i < len(groundIntervals):
            intervalLeft = groundIntervals[i][0]
            intervalRight = groundIntervals[i][1]
            intervalHeight = groundIntervals[i][2]

            if intervalRight <= left or right <= intervalLeft:
                newIntervals.append((intervalLeft, intervalRight, intervalHeight))
            else:
                if intervalLeft < left:
                    newIntervals.append((intervalLeft, left, intervalHeight))
                if right < intervalRight:
                    newIntervals.append((right, intervalRight, intervalHeight))
            i += 1

        newIntervals.append((left, right, newHeight))
        newIntervals.sort()

        groundIntervals = []
        if newIntervals:
            groundIntervals.append(newIntervals[0])
            for i in range(1, len(newIntervals)):
                prevIntervalLeft, prevIntervalRight, prevIntervalHeight = groundIntervals[-1]
                currentIntervalLeft, currentIntervalRight, currentIntervalHeight = newIntervals[i]

                # Combine adjacent intervals of same height
                if currentIntervalLeft == prevIntervalRight and currentIntervalHeight == prevIntervalHeight:
                    groundIntervals[-1] = (prevIntervalLeft, currentIntervalRight, prevIntervalHeight)
                else:
                    groundIntervals.append((currentIntervalLeft, currentIntervalRight, currentIntervalHeight))

    return result

Big(O) Analysis

Time Complexity

O(n²) – We iterate through each of the n falling squares. For each square, we potentially iterate through existing ground intervals to find overlaps and determine the landing height. Then, we may need to update the ground intervals by merging or removing overlapping intervals, which can take up to O(n) time in the worst case. Therefore, for each of the n squares, we perform an O(n) operation, resulting in a time complexity of O(n * n), which simplifies to O(n²).

Space Complexity

O(N) – The primary space usage comes from tracking the covered intervals on the 'ground'. In the worst-case scenario, where no squares overlap, we will have N intervals, where N is the number of falling squares. Each interval requires storing its start position and height. Therefore, the auxiliary space used grows linearly with the number of squares. This results in O(N) space complexity.

Edge Cases

Case	How to Handle
Empty squares array	Return an empty result list if the input squares array is empty.
Squares with zero side length	Treat a square with zero side length as having no effect on the skyline.
Overlapping squares covering the entire range	Ensure the maximum height is calculated correctly after multiple fully overlapping squares.
Very large coordinates leading to integer overflow	Use long to store coordinates and heights to prevent potential integer overflow.
Maximum number of squares, stressing memory allocation	Consider using a more memory-efficient data structure if the number of squares is extremely large.
Squares with identical positions but different side lengths	The square with a later start position will overwrite any existing heights in the covered range.
Squares placed very far apart, leading to large gaps	The solution must accurately represent the skyline even with large gaps of zero height.
Negative coordinate values	Adjust coordinate system to handle negative coordinates by offsetting all values to be positive
