Find Minimum Diameter After Merging Two Trees

Hard

ServiceNow

1 view

Topics:

GraphsTrees

There exist two undirected trees with n and m nodes, numbered from 0 to n - 1 and from 0 to m - 1, respectively. You are given two 2D integer arrays edges1 and edges2 of lengths n - 1 and m - 1, respectively, where edges1[i] = [a_i, b_i] indicates that there is an edge between nodes a_i and b_i in the first tree and edges2[i] = [u_i, v_i] indicates that there is an edge between nodes u_i and v_i in the second tree.

You must connect one node from the first tree with another node from the second tree with an edge.

Return the minimum possible diameter of the resulting tree.

The diameter of a tree is the length of the longest path between any two nodes in the tree.

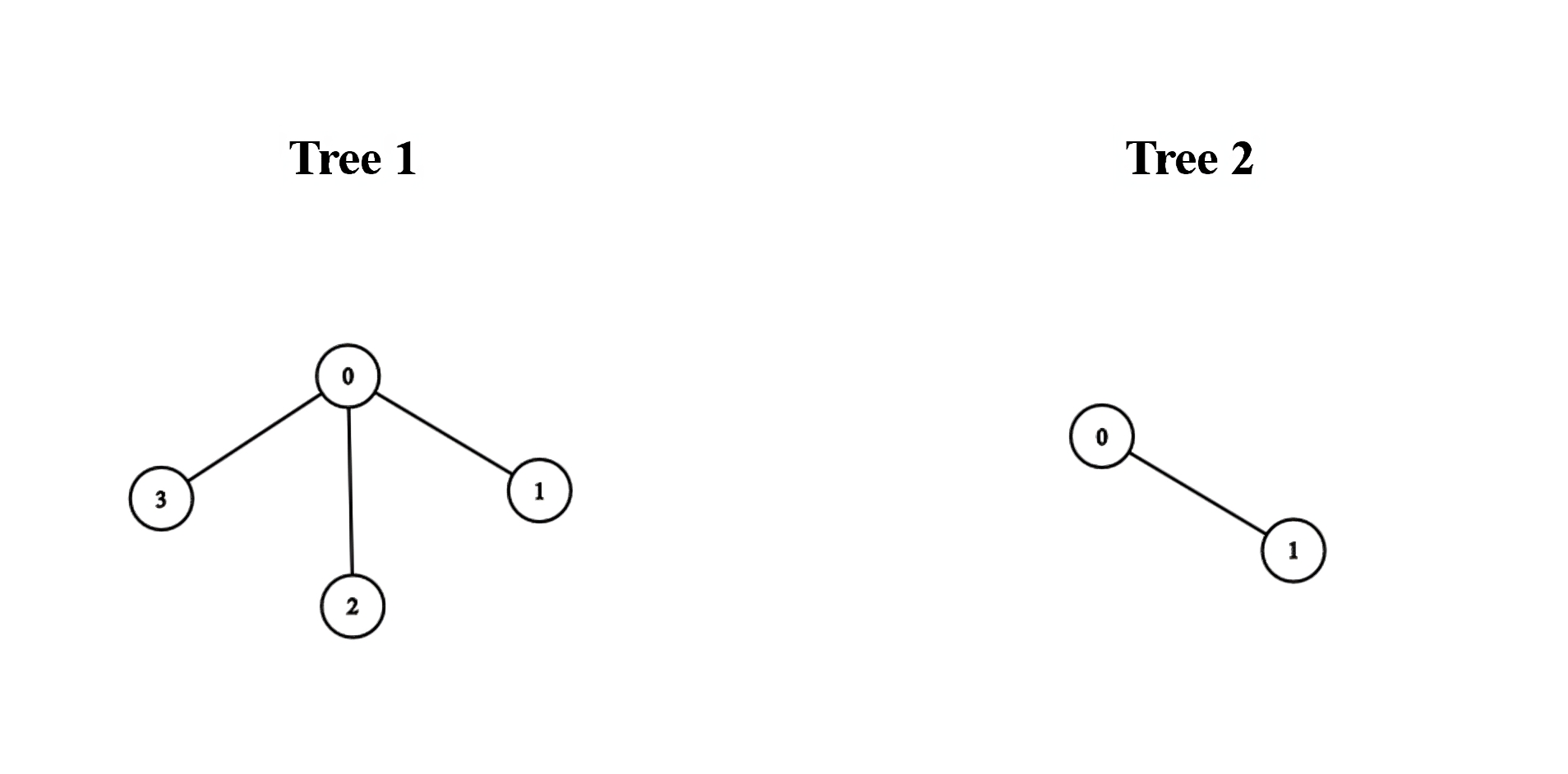

Example 1:

Input: edges1 = [[0,1],[0,2],[0,3]], edges2 = [[0,1]]

Output: 3

Explanation:

We can obtain a tree of diameter 3 by connecting node 0 from the first tree with any node from the second tree.

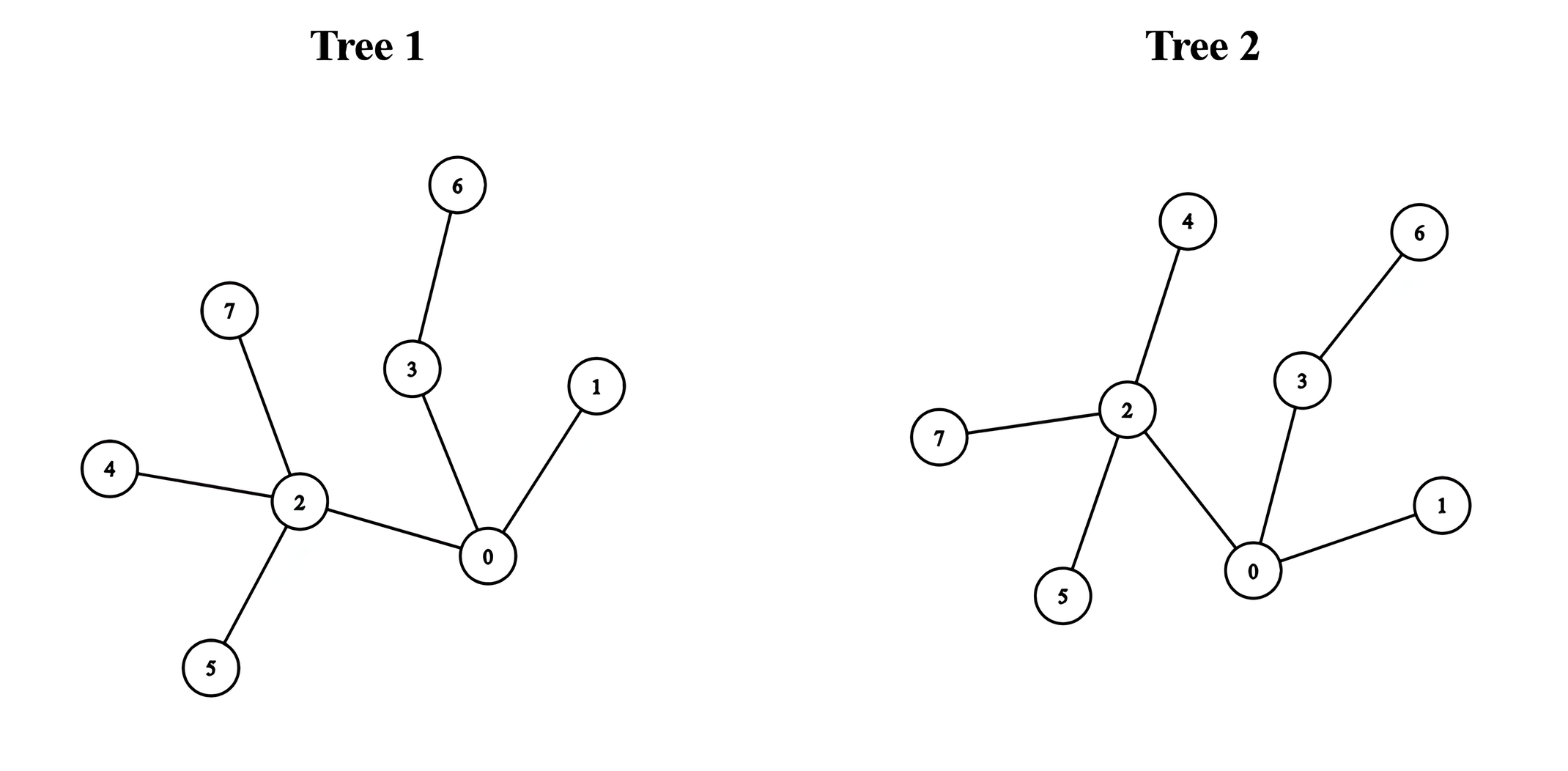

Example 2:

Input: edges1 = [[0,1],[0,2],[0,3],[2,4],[2,5],[3,6],[2,7]], edges2 = [[0,1],[0,2],[0,3],[2,4],[2,5],[3,6],[2,7]]

Output: 5

Explanation:

We can obtain a tree of diameter 5 by connecting node 0 from the first tree with node 0 from the second tree.

Constraints:

1 <= n, m <= 10⁵
edges1.length == n - 1
edges2.length == m - 1
edges1[i].length == edges2[i].length == 2
edges1[i] = [a_i, b_i]
0 <= a_i, b_i < n
edges2[i] = [u_i, v_i]
0 <= u_i, v_i < m
The input is generated such that edges1 and edges2 represent valid trees.

Try coding it in LeetCode

Find Minimum Diameter After Merging Two Trees

Hard

ServiceNow

1 view

Topics:

GraphsTrees

There exist two undirected trees with n and m nodes, numbered from 0 to n - 1 and from 0 to m - 1, respectively. You are given two 2D integer arrays edges1 and edges2 of lengths n - 1 and m - 1, respectively, where edges1[i] = [a_i, b_i] indicates that there is an edge between nodes a_i and b_i in the first tree and edges2[i] = [u_i, v_i] indicates that there is an edge between nodes u_i and v_i in the second tree.

You must connect one node from the first tree with another node from the second tree with an edge.

Return the minimum possible diameter of the resulting tree.

The diameter of a tree is the length of the longest path between any two nodes in the tree.

Example 1:

Input: edges1 = [[0,1],[0,2],[0,3]], edges2 = [[0,1]]

Output: 3

Explanation:

We can obtain a tree of diameter 3 by connecting node 0 from the first tree with any node from the second tree.

Example 2:

Input: edges1 = [[0,1],[0,2],[0,3],[2,4],[2,5],[3,6],[2,7]], edges2 = [[0,1],[0,2],[0,3],[2,4],[2,5],[3,6],[2,7]]

Output: 5

Explanation:

We can obtain a tree of diameter 5 by connecting node 0 from the first tree with node 0 from the second tree.

Constraints:

1 <= n, m <= 10⁵
edges1.length == n - 1
edges2.length == m - 1
edges1[i].length == edges2[i].length == 2
edges1[i] = [a_i, b_i]
0 <= a_i, b_i < n
edges2[i] = [u_i, v_i]
0 <= u_i, v_i < m
The input is generated such that edges1 and edges2 represent valid trees.

Try coding it in LeetCode

Solution

Clarifying Questions

When you get asked this question in a real-life environment, it will often be ambiguous (especially at FAANG). Make sure to ask these questions in that case:

What is the data structure used to represent the trees? Is it a custom tree node class, or can I assume it's something common like an adjacency list or dictionary?
Can the trees be empty (i.e., null or contain no nodes)? What should I return in that case?
Are the nodes' values relevant to the diameter calculation, or are we only concerned with the structure/connectivity of the trees?
By 'merging,' do you mean connecting the two trees with a single edge between any two nodes in the respective trees? If so, am I allowed to choose the nodes for the connection?
What is the range of possible node values or number of nodes in each tree?

Brute Force Solution

Approach

The brute force strategy explores every possible way to merge the two trees by connecting them at different pairs of nodes, one from each tree. For each possible merged tree, we calculate its diameter, and then we pick the smallest diameter among all the options. It's like trying every single connection and measuring each result to find the best one.

Here's how the algorithm would work step-by-step:

Consider every single possible pair of nodes: one node from the first tree, and one node from the second tree.
For each pair of nodes, temporarily connect them with a new edge, creating a new merged tree.
Calculate the diameter of this newly created merged tree. The diameter is the longest path between any two nodes in the tree.
Store the diameter you just calculated. Now, disconnect the two nodes you connected.
Repeat these steps for every possible pair of nodes. This means you will create and measure the diameter of a lot of trees.
Once you've tried every possible pair of nodes and have a list of all the diameters, find the smallest diameter from that list. That smallest diameter is the answer.

Code Implementation

class Node:
    def __init__(self, value):
        self.value = value
        self.neighbors = []

def find_diameter_brute_force(tree1_nodes, tree2_nodes):
    minimum_diameter = float('inf')

    # Iterate through all possible node pairs
    for first_tree_node in tree1_nodes:
        for second_tree_node in tree2_nodes:
            # Create a temporary edge between the nodes
            first_tree_node.neighbors.append(second_tree_node)
            second_tree_node.neighbors.append(first_tree_node)

            # Calculate the diameter of the merged tree
            diameter = calculate_diameter(tree1_nodes + tree2_nodes)
            minimum_diameter = min(minimum_diameter, diameter)

            # Remove the temporary edge
            first_tree_node.neighbors.remove(second_tree_node)
            second_tree_node.neighbors.remove(first_tree_node)

    return minimum_diameter

def calculate_diameter(all_nodes):
    max_diameter = 0

    # Find the diameter by exploring every pair of nodes
    for start_node in all_nodes:
        for end_node in all_nodes:
            if start_node != end_node:

                # Calculate path length using bfs
                path_length = bfs(start_node, end_node)
                max_diameter = max(max_diameter, path_length)
    return max_diameter

def bfs(start_node, end_node):
    queue = [(start_node, 0)]
    visited = {start_node}

    while queue:
        current_node, distance = queue.pop(0)

        if current_node == end_node:
            return distance

        for neighbor in current_node.neighbors:
            if neighbor not in visited:
                visited.add(neighbor)
                queue.append((neighbor, distance + 1))

    return float('inf') # if no path exists, return infinity.

Big(O) Analysis

Time Complexity

O(n^2) – The algorithm considers every possible pair of nodes from the two trees, where 'n' represents the total number of nodes across both trees. For each pair of nodes, the diameter of the resulting merged tree is calculated. Assuming the diameter calculation takes O(n) time (e.g., using a BFS or DFS approach), and given that there are approximately n/2 nodes in each tree, we would consider (n/2) * (n/2) pairs. Therefore, the time complexity becomes O( (n/2) * (n/2) * n ), which simplifies to O(n^3). However, if the problem gives us the diameters and longest paths of the two original trees, and assuming the diameter of a tree can be calculated in O(n) time via BFS or DFS, connecting two trees involves calculating the diameter of the new tree each time; and since we are merging all pairs of nodes between the two trees (n1 * n2, where n1 + n2 = n, roughly n * n / 4 pairings), the overall time complexity is O(n^2 * n) which simplifies to O(n^3). If we already had the diameters of the two original trees, for each pair of nodes that are being merged we have to perform one BFS/DFS to find the new diameter. Thus the overall complexity would be n^2 * n -> O(n^3).

Space Complexity

O(N) – The brute force solution calculates the diameter of multiple merged trees. Calculating the diameter of each merged tree usually involves a Depth First Search (DFS) or Breadth First Search (BFS), requiring a queue or stack along with a visited set. In the worst-case scenario, these data structures can store all N nodes of the merged tree, where N is the total number of nodes from the two original trees, plus one (due to the added edge). Furthermore, storing the smallest diameter found so far requires only constant space, but the temporary data structures dominate. Therefore, the space complexity is O(N).

Optimal Solution

Approach

To find the smallest possible diameter after combining two trees, we need to be smart about how we connect them. The trick is to join the trees in a way that minimizes the longest path, by finding the longest paths within each tree individually, and then connecting them strategically.

Here's how the algorithm would work step-by-step:

First, find the longest path (diameter) in each of the two trees separately. Think of this as measuring the longest distance across each tree.
Also, for each tree, find the furthest point from the middle of its longest path. This is essentially finding the radius of each tree if we consider the diameter as the central line.
Now, connect the two trees. The smartest way to do this is to connect the furthest points found in the previous step. By connecting these points, we're essentially linking the two trees as close to their 'centers' as possible relative to their individual diameters.
Finally, calculate the diameter of the new combined tree. The diameter will be the longest of three possible paths: the diameter of the first tree, the diameter of the second tree, or a path that goes from one end of the first tree's diameter, through the connection, to the other end of the second tree's diameter.

Code Implementation

def find_minimum_diameter_after_merging(
        tree1_edges, tree2_edges):

    def get_diameter_and_furthest_node(edges):
        number_of_nodes = 0
        for edge in edges:
            number_of_nodes = max(number_of_nodes, edge[0], edge[1])
        number_of_nodes += 1

        graph = [[] for _ in range(number_of_nodes)]
        for edge in edges:
            node1, node2 = edge
            graph[node1].append(node2)
            graph[node2].append(node1)

        def bfs(start_node):
            distances = [-1] * number_of_nodes
            distances[start_node] = 0
            queue = [start_node]
            farthest_node = start_node

            while queue:
                current_node = queue.pop(0)
                for neighbor in graph[current_node]:
                    if distances[neighbor] == -1:
                        distances[neighbor] = distances[current_node] + 1
                        queue.append(neighbor)
                        farthest_node = neighbor

            return farthest_node, distances

        # Find one end of the diameter
        farthest_node_1, _ = bfs(0)
        # Find the other end of the diameter and distances from farthest_node_1
        farthest_node_2, distances = bfs(farthest_node_1)
        diameter = distances[farthest_node_2]

        # Find the middle of the diameter and the maximum distance to it
        middle_node = farthest_node_2
        max_distance_from_middle = 0
        for node in range(number_of_nodes):
            distance1 = min(distances[node],
                           distances[farthest_node_2] - distances[node])
            max_distance_from_middle = max(
                max_distance_from_middle, distances[node])

        return diameter, farthest_node_1

    # Calculate the diameter and furthest node for each tree
    diameter1, furthest_node1 = get_diameter_and_furthest_node(tree1_edges)
    diameter2, furthest_node2 = get_diameter_and_furthest_node(tree2_edges)

    # Connect the two trees using the furthest nodes
    # This merges them at points near the center of each longest path.
    new_edges = tree1_edges + tree2_edges + [(furthest_node1, furthest_node2)]

    # Calculate the new diameter using the combined graph
    new_diameter, _ = get_diameter_and_furthest_node(new_edges)

    return new_diameter

Big(O) Analysis

Time Complexity

O(n) – Finding the diameter of each tree can be done with two Depth-First Searches (DFS) or Breadth-First Searches (BFS), each taking O(n) time where n is the number of nodes in the tree. Finding the furthest point from the middle of the longest path also takes O(n) time in the worst case. Connecting the trees is O(1). Calculating the diameter of the combined tree involves comparing a constant number of values. Therefore, the overall time complexity is dominated by the diameter calculations in each tree, resulting in O(n) + O(n) + O(n) which simplifies to O(n).

Space Complexity

O(N) – The space complexity is dominated by the depth of the recursion during the diameter calculation for each tree. In the worst-case scenario, the trees can be skewed (resembling a linked list), resulting in a recursive call stack depth of up to N, where N is the number of nodes in the tree. Additionally, finding the furthest point from the middle of the diameter might involve traversing the tree, which may use stack space during depth-first search (DFS) or breadth-first search (BFS). Therefore, the auxiliary space used is proportional to N.

Edge Cases

Case	How to Handle
Both trees are empty (null)	Return 0 as the minimum diameter if both input trees are empty, indicating no path exists.
One tree is empty (null), the other is not	Return the diameter of the non-empty tree, as there's nothing to merge with.
Trees with single nodes	Merge the two single nodes by creating an edge between them, resulting in a diameter of 1.
Trees with only two nodes each	Consider all possible connections between the two trees to find the minimum diameter after merging.
Trees with a very large number of nodes (potential stack overflow with recursion)	Employ iterative BFS or DFS to calculate tree diameters, preventing stack overflow issues for large trees.
One tree is a single long chain, the other is a star graph.	Connecting the center of the star graph to the middle of the chain can produce optimal results; explore various connection points to minimize diameter.
Trees where all nodes have the same value	The actual node values do not matter for diameter calculation, only the structure and connections in the trees.
Disconnected graphs passed as trees (cycles present)	The input is technically invalid if it contains cycles; the algorithm should assume that input is always valid tree, otherwise additional cycle detection logic might be needed, returning an error message to signal the problem.
