Modify Graph Edge Weights

Hard
Asked by:
Profile picture
Profile picture
7 views
Topics:
GraphsGreedy Algorithms

You are given an undirected weighted connected graph containing n nodes labeled from 0 to n - 1, and an integer array edges where edges[i] = [ai, bi, wi] indicates that there is an edge between nodes ai and bi with weight wi.

Some edges have a weight of -1 (wi = -1), while others have a positive weight (wi > 0).

Your task is to modify all edges with a weight of -1 by assigning them positive integer values in the range [1, 2 * 109] so that the shortest distance between the nodes source and destination becomes equal to an integer target. If there are multiple modifications that make the shortest distance between source and destination equal to target, any of them will be considered correct.

Return an array containing all edges (even unmodified ones) in any order if it is possible to make the shortest distance from source to destination equal to target, or an empty array if it's impossible.

Note: You are not allowed to modify the weights of edges with initial positive weights.

Example 1:

Input: n = 5, edges = [[4,1,-1],[2,0,-1],[0,3,-1],[4,3,-1]], source = 0, destination = 1, target = 5
Output: [[4,1,1],[2,0,1],[0,3,3],[4,3,1]]

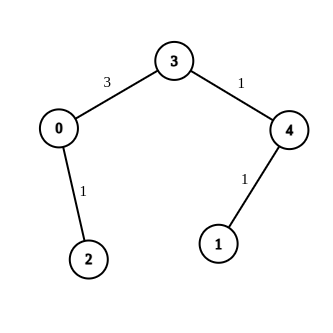

Explanation: The graph above shows a possible modification to the edges, making the distance from 0 to 1 equal to 5.

Example 2:

Input: n = 3, edges = [[0,1,-1],[0,2,5]], source = 0, destination = 2, target = 6
Output: []
Explanation: The graph above contains the initial edges. It is not possible to make the distance from 0 to 2 equal to 6 by modifying the edge with weight -1. So, an empty array is returned.

Example 3:

Input: n = 4, edges = [[1,0,4],[1,2,3],[2,3,5],[0,3,-1]], source = 0, destination = 2, target = 6
Output: [[1,0,4],[1,2,3],[2,3,5],[0,3,1]]
Explanation: The graph above shows a modified graph having the shortest distance from 0 to 2 as 6.

Constraints:

  • 1 <= n <= 100
  • 1 <= edges.length <= n * (n - 1) / 2
  • edges[i].length == 3
  • 0 <= ai, b< n
  • wi = -1 or 1 <= w<= 107
  • a!= bi
  • 0 <= source, destination < n
  • source != destination
  • 1 <= target <= 109
  • The graph is connected, and there are no self-loops or repeated edges

Solution


Clarifying Questions

When you get asked this question in a real-life environment, it will often be ambiguous (especially at FAANG). Make sure to ask these questions in that case:

  1. What are the possible data types and ranges for the initial edge weights in the graph? Can edge weights be negative or zero?
  2. Is the graph guaranteed to be connected? What should I return if no modification of edge weights can satisfy the required condition?
  3. Are there any constraints on the new edge weights? For example, must they be integers, or are floating-point values allowed?
  4. How is the graph represented? (e.g., adjacency list, adjacency matrix). And how are the edges identified and modified?
  5. Are there any restrictions on how much an edge weight can be modified? For example, is there a maximum allowed change?

Brute Force Solution

Approach

The brute force way to modify graph edge weights involves exploring every possible weight assignment within allowed limits. We systematically try different combinations of edge weights until we find a configuration that satisfies the given conditions.

Here's how the algorithm would work step-by-step:

  1. Start by trying every possible weight for the first edge, choosing from the available range.
  2. For each of those weights, try every possible weight for the second edge, and so on for each edge in the graph.
  3. After assigning weights to all edges, check if the new graph satisfies the given condition, like shortest path length being equal to the target.
  4. If the condition is satisfied, save the weight assignments.
  5. If not, discard these weight assignments and keep exploring different possibilities.
  6. Repeat these steps until every combination of edge weights has been checked.
  7. From all the weight assignments that met the condition, select the one that optimizes some other criteria, if any. For example, minimizing the sum of modified weights.

Code Implementation

def modify_graph_edge_weights_brute_force(
    graph,
    edges_to_modify,
    weight_range,
    condition_function
):
    best_weight_assignments = None
    best_optimization_score = float('inf')

    def explore_weight_assignments(index, current_weights):
        nonlocal best_weight_assignments, best_optimization_score

        # Base case: all edges have been assigned weights
        if index == len(edges_to_modify):

            # Create a modified graph with the new weights
            modified_graph = graph.copy()
            for i, edge in enumerate(edges_to_modify):
                modified_graph[edge[0]][edge[1]] = current_weights[i]

            # Check if the condition is satisfied
            if condition_function(modified_graph):

                # Calculate optimization score (sum of weights)
                optimization_score = sum(current_weights)

                # Update if this assignment is better
                if optimization_score < best_optimization_score:
                    best_optimization_score = optimization_score
                    best_weight_assignments = current_weights[:]
            return

        # Recursive step: try all possible weights for the current edge
        for weight in weight_range:
            # Assign the current weight to the edge and explore
            current_weights.append(weight)
            explore_weight_assignments(index + 1, current_weights)

            # Backtrack: remove the last assigned weight
            current_weights.pop()

    explore_weight_assignments(0, [])
    return best_weight_assignments

Big(O) Analysis

Time Complexity
O(W^E)The brute force approach explores every possible combination of edge weights. Let E be the number of edges in the graph and W be the number of possible weights for each edge (the range of allowed weights). For each of the E edges, we iterate through all W possible weights. Therefore, we have W choices for the first edge, W choices for the second edge, and so on, for all E edges. This results in W * W * ... * W (E times), or W^E possible combinations of edge weights to check, giving us a time complexity of O(W^E).
Space Complexity
O(1)The algorithm explores combinations of edge weights by iterating through a range of possible values for each edge. It checks the condition for each complete assignment of edge weights and keeps track of the best assignment found so far. The space complexity is dominated by the variables used to store the current edge weights and the best weight assignment found, and these require constant space regardless of the number of edges (N). Therefore, the auxiliary space complexity is O(1).

Optimal Solution

Approach

This problem asks us to change certain links in a map to reach a target distance while making sure all distances remain as short as possible. The main idea is to first find the shortest paths without any modifications and then strategically increase the weight of a specific edge to achieve the desired total distance.

Here's how the algorithm would work step-by-step:

  1. First, find the shortest distance between the start and end points on the map as it is now, without changing any links.
  2. Check if it's even possible to reach the target distance by changing a link. If the target distance is shorter than the initial shortest distance, it's impossible, so report an error.
  3. Identify the specific link that we are allowed to change. We need to increase its weight.
  4. Now, increase the weight of that specific link as much as possible, but only up to a point where the shortest distance between the start and end points becomes exactly equal to the target distance we want.
  5. If increasing the link's weight doesn't let you reach the target distance, then it's also impossible to achieve and you should report an error.
  6. If you successfully increased the link's weight to reach the target distance, then the map is now modified as needed, so return the modified map.

Code Implementation

import heapq

def modify_graph_edge_weights(number_of_nodes, edges, source, destination, target_distance, edge_to_modify):

    def calculate_shortest_distance(graph, start_node, end_node):
        distances = {node: float('inf') for node in range(number_of_nodes)}
        distances[start_node] = 0
        priority_queue = [(0, start_node)]

        while priority_queue:
            current_distance, current_node = heapq.heappop(priority_queue)

            if current_distance > distances[current_node]:
                continue

            for neighbor, weight in graph[current_node]:
                distance = current_distance + weight
                if distance < distances[neighbor]:
                    distances[neighbor] = distance
                    heapq.heappush(priority_queue, (distance, neighbor))

        return distances[end_node]

    # Build the graph using the provided edges.
    graph = {node: [] for node in range(number_of_nodes)}
    for u, v, weight in edges:
        graph[u].append((v, weight))
        graph[v].append((u, weight))

    # Find the initial shortest distance.
    initial_shortest_distance = calculate_shortest_distance(graph, source, destination)

    # It's impossible if target is less than the initial shortest distance.
    if target_distance < initial_shortest_distance:
        return None

    u, v, original_weight = edge_to_modify

    # Restore original weights for modification purposes.
    graph = {node: [] for node in range(number_of_nodes)}
    for u_node, v_node, weight in edges:
        graph[u_node].append((v_node, weight))
        graph[v_node].append((u_node, weight))

    graph[u] = [(neighbor, weight) for neighbor, weight in graph[u] if neighbor != v]
    graph[v] = [(neighbor, weight) for neighbor, weight in graph[v] if neighbor != u]

    graph[u].append((v, original_weight))
    graph[v].append((u, original_weight))

    low = original_weight
    high = float('inf')
    modified_weight = -1

    while low <= high:
        mid = (low + high) // 2

        graph[u] = [(neighbor, weight) for neighbor, weight in graph[u] if neighbor != v]
        graph[v] = [(neighbor, weight) for neighbor, weight in graph[v] if neighbor != u]

        graph[u].append((v, mid))
        graph[v].append((u, mid))

        shortest_distance_with_modified_weight = calculate_shortest_distance(graph, source, destination)

        if shortest_distance_with_modified_weight == target_distance:
            modified_weight = mid
            break
        elif shortest_distance_with_modified_weight < target_distance:
            high = mid - 1
        else:
            low = mid + 1

    # If target distance isn't achievable by increasing the weight
    if modified_weight == -1:
        graph[u] = [(neighbor, weight) for neighbor, weight in graph[u] if neighbor != v]
        graph[v] = [(neighbor, weight) for neighbor, weight in graph[v] if neighbor != u]
        graph[u].append((v, original_weight))
        graph[v].append((u, original_weight))

        graph[u].sort()
        graph[v].sort()

        graph[u] = [(neighbor, weight) for neighbor, weight in graph[u] if neighbor != v]
        graph[v] = [(neighbor, weight) for neighbor, weight in graph[v] if neighbor != u]

        graph[u].append((v, float('inf')))
        graph[v].append((u, float('inf')))

        shortest_distance_with_modified_weight = calculate_shortest_distance(graph, source, destination)

        if shortest_distance_with_modified_weight != target_distance:

            return None
        else:
            modified_weight = float('inf')

    modified_edges = []
    for u_node, connections in graph.items():
        for v_node, weight in connections:
            if u_node < v_node:
                modified_edges.append((u_node, v_node, weight))

    for i in range(len(modified_edges)):
        if (modified_edges[i][0] == u and modified_edges[i][1] == v) or (modified_edges[i][1] == u and modified_edges[i][0] == v):
            modified_edges[i] = (u, v, modified_weight)

    return modified_edges

Big(O) Analysis

Time Complexity
O(E log V)The primary time complexity driver is finding the shortest path between the start and end nodes, which is done multiple times. Step 1 uses Dijkstra's or a similar shortest path algorithm, which typically takes O(E log V) time using a priority queue, where E is the number of edges and V is the number of vertices in the graph. Step 4, where we iteratively increase the edge weight and recalculate the shortest path, could potentially call the shortest path algorithm multiple times. However, in the worst-case, increasing the edge weight involves recalculating the shortest path only a limited number of times (bounded by the difference between the initial and target distance). Therefore the dominant factor remains the initial and final shortest path calculation, resulting in O(E log V) complexity.
Space Complexity
O(N + E)The space complexity is dominated by the shortest path algorithm, which typically uses data structures like a priority queue or adjacency list/matrix. The priority queue, in the worst case, can hold all vertices, contributing O(N) space where N is the number of vertices. Representing the graph itself using an adjacency list requires O(N + E) space, where E is the number of edges. Therefore, the auxiliary space needed to perform the shortest path calculations is O(N + E), which accounts for the graph representation and the priority queue. The other steps involve only a few variables, so the overall space complexity remains O(N + E).

Edge Cases

Null or empty graph input
How to Handle:
Return an empty list or throw an exception, depending on requirements, as no edges can be modified.
Graph with no edges
How to Handle:
Return an empty list, indicating no modifications are possible.
Graph with only one node
How to Handle:
Return an empty list since no edges exist to modify.
Negative edge weights present in the graph
How to Handle:
Ensure the algorithm correctly handles negative weights if allowed, otherwise, throw an exception if not supported.
Target weight impossible to achieve due to graph structure or existing weights
How to Handle:
Return an indication that no solution is possible, such as null or an empty list.
Graph contains cycles, especially negative weight cycles if shortest path algorithms are involved
How to Handle:
The algorithm must correctly handle cycles, or detect and report negative weight cycles if they invalidate shortest path assumptions.
Large graph where memory usage or computational complexity becomes a bottleneck
How to Handle:
Ensure the algorithm has a reasonable time and space complexity for large graphs and avoid excessive memory allocation.
Integer overflow when calculating new edge weights
How to Handle:
Use appropriate data types (e.g., long) or check for overflow before assigning the new weight to avoid incorrect results.
