Rectangle Area II

Hard

Flipkart

2 views

Topics:

ArraysTwo PointersGreedy Algorithms

You are given a 2D array of axis-aligned rectangles. Each rectangle[i] = [x_i1, y_i1, x_i2, y_i2] denotes the i^th rectangle where (x_i1, y_i1) are the coordinates of the bottom-left corner, and (x_i2, y_i2) are the coordinates of the top-right corner.

Calculate the total area covered by all rectangles in the plane. Any area covered by two or more rectangles should only be counted once.

Return the total area. Since the answer may be too large, return it modulo 10⁹ + 7.

Example 1:

Input: rectangles = [[0,0,2,2],[1,0,2,3],[1,0,3,1]]
Output: 6

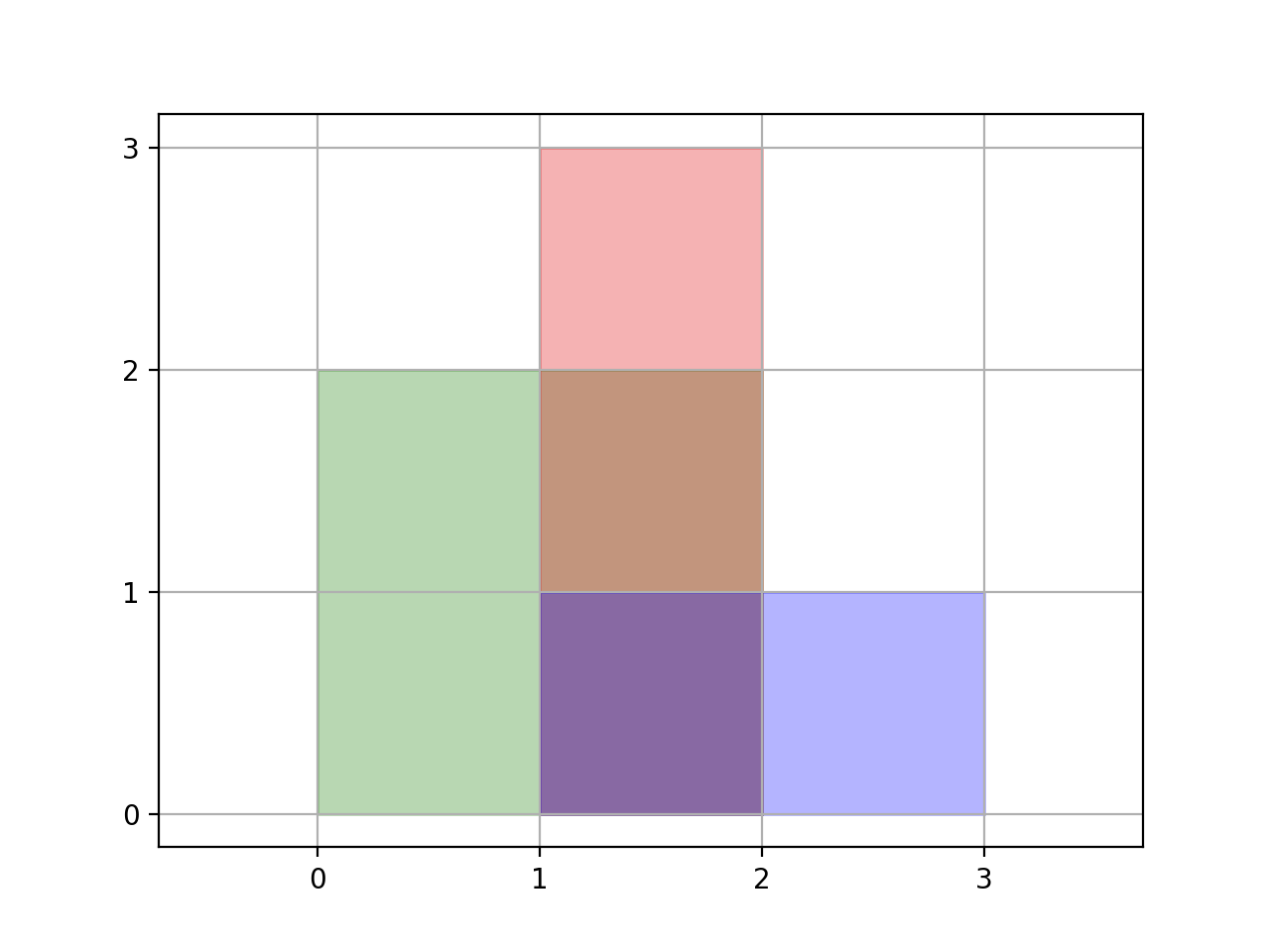

Explanation: A total area of 6 is covered by all three rectangles, as illustrated in the picture.
From (1,1) to (2,2), the green and red rectangles overlap.
From (1,0) to (2,3), all three rectangles overlap.

Example 2:

Input: rectangles = [[0,0,1000000000,1000000000]]
Output: 49
Explanation: The answer is 10¹⁸ modulo (10⁹ + 7), which is 49.

Constraints:

1 <= rectangles.length <= 200
rectanges[i].length == 4
0 <= x_i1, y_i1, x_i2, y_i2 <= 10⁹
x_{i1 <=}x_i2
y_{i1 <=} y_i2
All rectangles have non zero area.

Try coding it in LeetCode

Rectangle Area II

Hard

Flipkart

2 views

Topics:

ArraysTwo PointersGreedy Algorithms

You are given a 2D array of axis-aligned rectangles. Each rectangle[i] = [x_i1, y_i1, x_i2, y_i2] denotes the i^th rectangle where (x_i1, y_i1) are the coordinates of the bottom-left corner, and (x_i2, y_i2) are the coordinates of the top-right corner.

Calculate the total area covered by all rectangles in the plane. Any area covered by two or more rectangles should only be counted once.

Return the total area. Since the answer may be too large, return it modulo 10⁹ + 7.

Example 1:

Input: rectangles = [[0,0,2,2],[1,0,2,3],[1,0,3,1]]
Output: 6
Explanation: A total area of 6 is covered by all three rectangles, as illustrated in the picture.
From (1,1) to (2,2), the green and red rectangles overlap.
From (1,0) to (2,3), all three rectangles overlap.

Example 2:

Input: rectangles = [[0,0,1000000000,1000000000]]
Output: 49
Explanation: The answer is 10¹⁸ modulo (10⁹ + 7), which is 49.

Constraints:

1 <= rectangles.length <= 200
rectanges[i].length == 4
0 <= x_i1, y_i1, x_i2, y_i2 <= 10⁹
x_{i1 <=}x_i2
y_{i1 <=} y_i2
All rectangles have non zero area.

Try coding it in LeetCode

Solution

Clarifying Questions

When you get asked this question in a real-life environment, it will often be ambiguous (especially at FAANG). Make sure to ask these questions in that case:

What is the range of the x and y coordinates for each rectangle?
Can rectangles overlap, and if so, how should overlapping areas be handled?
Can the input list of rectangles be empty or null?
Should the result be an integer, or can it be a floating-point number to account for very small areas?
Is the order of rectangles in the input significant, or should I treat them as an unordered set?

Brute Force Solution

Approach

The brute force method for finding the total area covered by overlapping rectangles involves checking every possible small area to see if it's covered by at least one rectangle. We essentially divide the entire space into very tiny squares and count how many of these squares are inside any of the rectangles.

Here's how the algorithm would work step-by-step:

Imagine a very fine grid covering the entire space where the rectangles might be.
For each tiny square in the grid, check if any of the rectangles overlap it.
If a square is covered by at least one rectangle, mark it as covered.
After checking every tiny square, count all the squares that are marked as covered.
The total area is then approximately equal to the number of covered squares, assuming each square represents a very small unit of area. The finer the grid, the more accurate the area calculation.

Code Implementation

def rectangle_area_ii_brute_force(rectangles, grid_size=0.1):
    min_x = float('inf')
    min_y = float('inf')
    max_x = float('-inf')
    max_y = float('-inf')

    for rectangle in rectangles:
        x1, y1, x2, y2 = rectangle
        min_x = min(min_x, x1)
        min_x = min(min_x, x2)
        min_y = min(min_y, y1)
        min_y = min(min_y, y2)
        max_x = max(max_x, x1)
        max_x = max(max_x, x2)
        max_y = max(max_y, y1)
        max_y = max(max_y, y2)

    total_area = 0

    # Iterate over all possible squares within the bounding box.
    for x in range(int(min_x * (1 / grid_size)), int(max_x * (1 / grid_size))):
        for y in range(int(min_y * (1 / grid_size)), int(max_y * (1 / grid_size))):
            square_x1 = x * grid_size
            square_y1 = y * grid_size
            square_x2 = (x + 1) * grid_size
            square_y2 = (y + 1) * grid_size

            is_covered = False

            # Check if the current square is covered by any rectangle.
            for rectangle in rectangles:
                rect_x1, rect_y1, rect_x2, rect_y2 = rectangle

                if (square_x1 < rect_x2 and square_x2 > rect_x1 and
                        square_y1 < rect_y2 and square_y2 > rect_y1):

                    # The current square is covered by at least one rectangle.
                    is_covered = True
                    break

            if is_covered:

                # Increase the total area if the square is covered.
                total_area += grid_size * grid_size

    return total_area

Big(O) Analysis

Time Complexity

O(N * X * Y) – Let N be the number of rectangles. We are dividing the entire space into tiny squares using a grid. Let X represent the number of squares along the x-axis and Y represent the number of squares along the y-axis. For each of the X * Y tiny squares in the grid, we must iterate through all N rectangles to check for overlap. Therefore, the total number of operations is proportional to N * X * Y, which gives a time complexity of O(N * X * Y).

Space Complexity

O(1) – The brute force method, as described, essentially iterates through a grid. It doesn't store the entire grid or visited squares in memory. It only needs to keep track of a few counters (e.g., current row, current column, total covered squares). Therefore, the auxiliary space is constant and independent of the input size (N, the number of rectangles).

Optimal Solution

Approach

The challenge is to calculate the total area covered by a set of overlapping rectangles. The key is to avoid double-counting areas where rectangles overlap by smartly sweeping a line across the rectangles and tracking the covered intervals. This gives us a much faster calculation than brute-force.

Here's how the algorithm would work step-by-step:

Imagine a vertical line sweeping from left to right across all the rectangles.
As the line moves, it encounters the left or right edges of rectangles. These are important events.
At each event (rectangle edge), note the height intervals currently covered by rectangles.
To do this, keep track of the vertical intervals along the sweeping line where at least one rectangle is present.
Multiply the length of the sweeping line's movement (the distance between adjacent rectangle edge x-coordinates) by the total height currently covered by the active intervals.
Add this area to a running total. This is because each step of the vertical sweeping line is effectively calculating the area of a very thin rectangle.
Repeat this process for every change in vertical coverage as the line sweeps, and the final running total will be the area covered by all rectangles, accounting for overlaps.

Code Implementation

def rectangle_area_ii(rectangles):
    MODULO = 10**9 + 7
    events = []
    for x1, y1, x2, y2 in rectangles:
        events.append((x1, y1, y2, 1))  # 1 for start
        events.append((x2, y1, y2, -1))  # -1 for end

    events.sort()

    active_intervals = []
    previous_x = 0
    total_area = 0

    for x, y1, y2, change in events:
        # Calculate width of the current sweep
        width = x - previous_x

        # Calculate the covered height by active intervals
        covered_height = 0
        if active_intervals:
            active_intervals.sort()
            current_end = active_intervals[0][0]
            total_covered = 0
            for start, end in active_intervals:
                current_end = max(current_end, start)
                total_covered = max(total_covered, min(end, current_end) - current_end if end > current_end else 0)
                current_end = max(current_end, end)

            last_y = -1
            for start, end in active_intervals:
                if start > last_y:
                    covered_height += end - start
                else:
                    covered_height += max(0, end - last_y)
                last_y = max(last_y, end)

            covered_height = 0
            last_y = -1
            for start, end in active_intervals:
                start = max(start, last_y)
                if start < end:
                  covered_height += end - start
                  last_y = end

        # Accumulate the area
        total_area = (total_area + width * covered_height) % MODULO

        # Update the active intervals
        if change == 1:
            active_intervals.append((y1, y2))
        else:
            active_intervals.remove((y1, y2))

        previous_x = x

    return total_area

Big(O) Analysis

Time Complexity

O(n log n) – The algorithm's time complexity is dominated by sorting the 2n rectangle edges by their x-coordinates, which takes O(n log n) time. The sweep line process iterates through these sorted edges. Within the sweep line process, maintaining the active vertical intervals involves inserting and deleting intervals from a sorted data structure (often implicitly done with a tree-like structure or similar). Insertion and deletion operations are logarithmic with respect to the number of active intervals, which in the worst case is O(n). Thus, the overall time complexity is O(n log n + n log n), which simplifies to O(n log n).

Space Complexity

O(N) – The algorithm maintains a list of rectangle edges as the sweeping line encounters them, storing x-coordinates and rectangle height information. As each rectangle contributes two edges (left and right), the number of edges stored is proportional to the number of rectangles, N. Furthermore, to track the covered vertical intervals along the sweeping line, a data structure such as a sorted list or interval tree is used, which in the worst case, could store information pertaining to all N rectangles. Therefore, the auxiliary space scales linearly with the input size N, giving a space complexity of O(N).

Edge Cases

Case	How to Handle
Null or empty input rectangle list	Return 0 immediately as there are no rectangles to calculate area for.
Single rectangle in the input list	Return the area of that single rectangle without any further processing.
Maximum number of rectangles (e.g., 200) with large coordinates	Ensure the data structures (like events or active intervals) are appropriately sized to handle the input and avoid memory issues, and that the sweep line algorithm's time complexity is efficient enough.
Rectangles with negative coordinates	Shift all coordinates to be non-negative by finding the minimum x and y values and subtracting them from all coordinates, then proceed with the standard algorithm.
Overlapping rectangles completely covering the same area	The union of overlapping areas will be correctly calculated by the sweep line algorithm, preventing double-counting of area.
Rectangles with very small areas (close to zero) or zero width/height	Use appropriate data types (e.g., double) and consider a tolerance value when comparing floating-point numbers to avoid precision errors.
Integer overflow during area calculation (large coordinates)	Use a 64-bit integer type (long) to store intermediate and final area calculations to prevent overflow, and calculate modulo at each step if necessary.
Floating point precision issues when subtracting or comparing coordinates	Use a small epsilon value (e.g., 1e-9) when comparing floating-point numbers and consider using integers if coordinate ranges are suitable after scaling.
