Largest Rectangle in Histogram

Hard

Roblox

1 view

Topics:

ArraysStacks

Given an array of integers heights representing the histogram's bar height where the width of each bar is 1, return the area of the largest rectangle in the histogram.

Example 1:

Input: heights = [2,1,5,6,2,3]
Output: 10

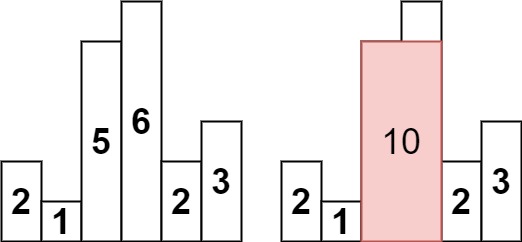

Explanation: The above is a histogram where width of each bar is 1.
The largest rectangle is shown in the red area, which has an area = 10 units.

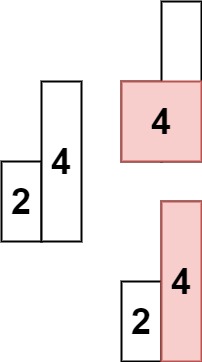

Example 2:

Input: heights = [2,4]
Output: 4

Constraints:

1 <= heights.length <= 10⁵
0 <= heights[i] <= 10⁴

Largest Rectangle in Histogram

Hard

Roblox

1 view

Topics:

ArraysStacks

Given an array of integers heights representing the histogram's bar height where the width of each bar is 1, return the area of the largest rectangle in the histogram.

Example 1:

Input: heights = [2,1,5,6,2,3]
Output: 10
Explanation: The above is a histogram where width of each bar is 1.
The largest rectangle is shown in the red area, which has an area = 10 units.

Example 2:

Input: heights = [2,4]
Output: 4

Constraints:

1 <= heights.length <= 10⁵
0 <= heights[i] <= 10⁴

Solution

Clarifying Questions

When you get asked this question in a real-life environment, it will often be ambiguous (especially at FAANG). Make sure to ask these questions in that case:

What is the expected range of values for the heights in the input array? Could they be negative or zero?
What should I return if the input array is empty or null?
Are there any limits on the size (number of bars) of the histogram? I'm thinking about potential space and time complexity implications.
In the case of multiple rectangles with the same largest area, is any of them acceptable to return?
Are the heights always integers, or could they be floating-point numbers?

Brute Force Solution

Approach

The brute force strategy finds the biggest rectangle by checking every possible rectangle you could make. It’s like trying every combination of building blocks to see which one creates the biggest structure. We go through each possibility, calculate its area, and remember the largest area we've seen so far.

Here's how the algorithm would work step-by-step:

For every bar in the histogram, consider it as the shortest bar in a potential rectangle.
For each of these 'shortest bar' candidates, look at all the bars to its left and right to see how wide we can make a rectangle.
The width of the rectangle is determined by how many bars are at least as tall as our 'shortest bar'.
Calculate the area of this rectangle (height times width).
Compare this area with the biggest area we've found so far and update the 'biggest area' if needed.
After checking all possible 'shortest bars' and their corresponding rectangles, the 'biggest area' we've kept track of is the answer.

Code Implementation

def largest_rectangle_brute_force(heights):
    max_area = 0
    number_of_heights = len(heights)

    for current_index in range(number_of_heights):
        # Consider each bar as the shortest bar.
        shortest_bar = heights[current_index]
        current_area = shortest_bar
        max_area = max(max_area, current_area)

        left_index = current_index - 1
        right_index = current_index + 1
        width = 1

        # Expand to the left while heights are >= shortest bar.
        while left_index >= 0 and heights[left_index] >= shortest_bar:

            width += 1
            current_area = shortest_bar * width
            max_area = max(max_area, current_area)
            left_index -= 1

        # Expand to the right while heights are >= shortest bar.
        width = current_index - left_index - 1

        while right_index < number_of_heights and heights[right_index] >= shortest_bar:

            width += 1
            current_area = shortest_bar * width

            #Track maximum area
            max_area = max(max_area, current_area)
            right_index += 1

        #Consider the current height as min and determine width.
        current_width = right_index - left_index - 1
        current_area = shortest_bar * current_width

        #Update the max area if necessary.
        max_area = max(max_area, current_area)

        for compare_index in range(current_index + 1, number_of_heights):
            # Find the minimum height in the selected range
            shortest_bar = min(shortest_bar, heights[compare_index])

            # Calculate area for the current sub-rectangle
            current_width = compare_index - current_index + 1
            current_area = shortest_bar * current_width

            max_area = max(max_area, current_area)

    return max_area

Big(O) Analysis

Time Complexity

O(n²) – The outer loop iterates through each of the n bars in the histogram, considering each as the potential minimum height of a rectangle. For each bar, the inner loop expands left and right to determine the maximum width possible for that height. In the worst case, the inner loop might need to check all other bars, resulting in approximately n operations per outer loop iteration. Therefore, the total number of operations approximates to n * n, leading to a time complexity of O(n²).

Space Complexity

O(1) – The brute force approach described only uses a few constant space variables like the current rectangle's height, width, and the maximum area found so far. No auxiliary data structures that scale with the input size are used. Therefore, the algorithm has constant auxiliary space complexity, independent of the number of bars (N) in the histogram.

Optimal Solution

Approach

To find the largest rectangle, the clever way is to efficiently keep track of potential rectangles as we go. We avoid unnecessary calculations by focusing on when a rectangle's height is limited by a smaller bar.

Here's how the algorithm would work step-by-step:

Imagine you're walking across the bars from left to right, and you're tracking the possibility of forming rectangles.
Keep adding bars to your potential rectangle as long as the bars are getting taller or staying the same height. These bars could be part of our best rectangle.
If you find a bar that's shorter than the bar you were just looking at, this means the potential rectangle ending at that previous bar is now limited. That means you can now calculate the area of that rectangle using that bar's height.
When you calculate the area of a rectangle, remember what column that height started from so you can find its width.
Keep doing this, and when you encounter smaller bars, calculate the area of rectangles as needed, always figuring out which rectangle is the biggest you've found so far.
At the end, remember to do a final check to calculate areas for any rectangles that are still in consideration.

Code Implementation

def largestRectangleArea(heights):
    max_area = 0
    stack = [] # Store (index, height) pairs

    for i, height in enumerate(heights):
        start_index = i

        while stack and stack[-1][1] > height:
            index, current_height = stack.pop()
            max_area = max(max_area, current_height * (i - index))
            start_index = index # Extend potential start

        stack.append((start_index, height))

        # Keep track of possible rectangles

    # Calculate remaining areas in the stack
    for index, height in stack:
        max_area = max(max_area, height * (len(heights) - index))

    return max_area

Big(O) Analysis

Time Complexity

O(n) – The algorithm iterates through the histogram bars from left to right. A stack is used to keep track of increasing or equal height bars. When a smaller bar is encountered, the algorithm pops bars from the stack, calculating areas. Each bar is pushed onto the stack once and popped at most once. Therefore, the number of operations is proportional to the number of bars, n. This results in O(n) time complexity.

Space Complexity

O(N) – The algorithm uses a stack to store the indices of bars that are potentially part of the largest rectangle. In the worst-case scenario, where the histogram bars are sorted in increasing order, all N indices will be pushed onto the stack before any areas are calculated, resulting in an auxiliary space that grows linearly with the number of bars. Thus, the space complexity is O(N), where N is the number of bars in the histogram. This stack allows us to keep track of the starting column of potential rectangles.

Edge Cases

Case	How to Handle
Empty input array	Return 0 immediately as no rectangle can exist.
Input array with one element	Return the value of the single element as it represents the largest possible rectangle.
Input array with all elements being 0	Return 0 as the area of the largest rectangle will be zero.
Input array with all elements being the same positive value	Return the value multiplied by the number of elements (height * width).
Input array sorted in ascending order	Algorithm should correctly calculate area considering all heights from left to right when iterating or pushing/popping from stack.
Input array sorted in descending order	Algorithm should correctly calculate area when popping heights from stack and calculating the rectangle areas.
Large input array to test for time complexity (e.g., 10^5 elements)	The solution must be O(n) using a stack to ensure it completes within a reasonable time.
Input array contains large height values that could lead to integer overflow	Use a data type like 'long' to store intermediate area calculations to prevent potential integer overflow.
